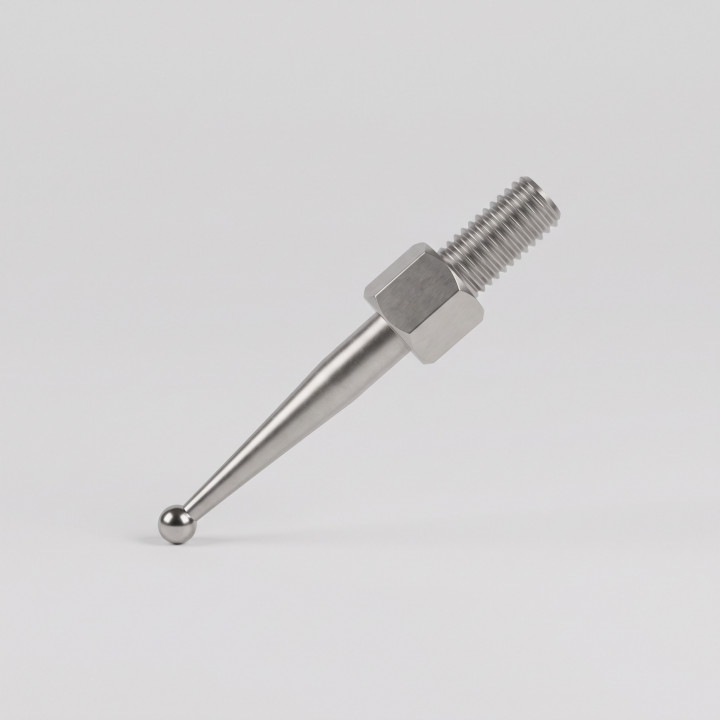

Stylus L22 is designed for direct measurement of easily accessible part features.
The rigid stainless steel stem ensures high stability for standard tasks, while the tungsten carbide tip delivers reliable precision and durability:
- Direct measurement of unobstructed surfaces
- Maximum rigidity with stainless steel stem

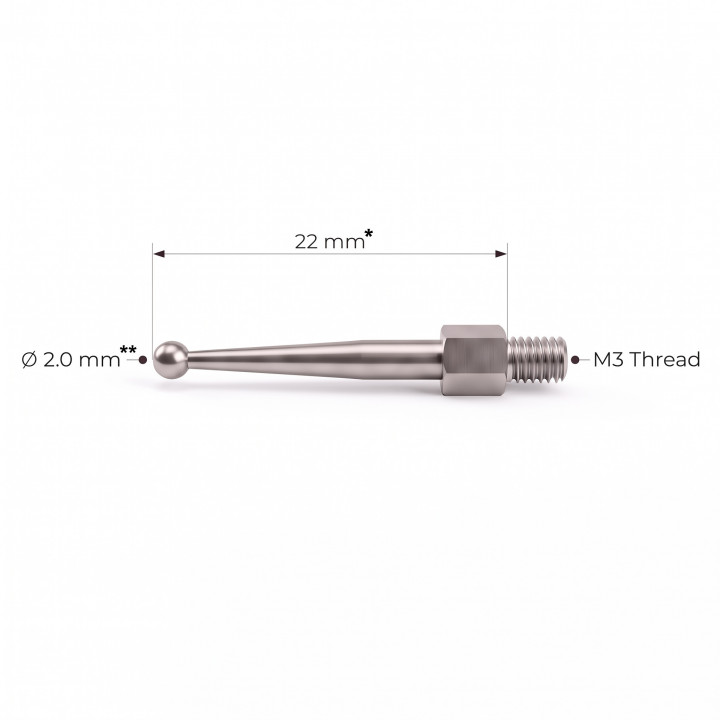

Specifications
Length (L)*: 22mm
Thread: M3
Tungsten carbide tip:
Ø 2.0mm**
Conditions of use
Minimum measurable
hole diameter: 3 mm
Maximum measurement
depth: 5 mm
* L - distance from tip to base of thread.
** The diameter of the tip is indicated approximately, in fact it can differ from that specified within ±0.01mm, the spherical irregularity is < 0.001 mm.
