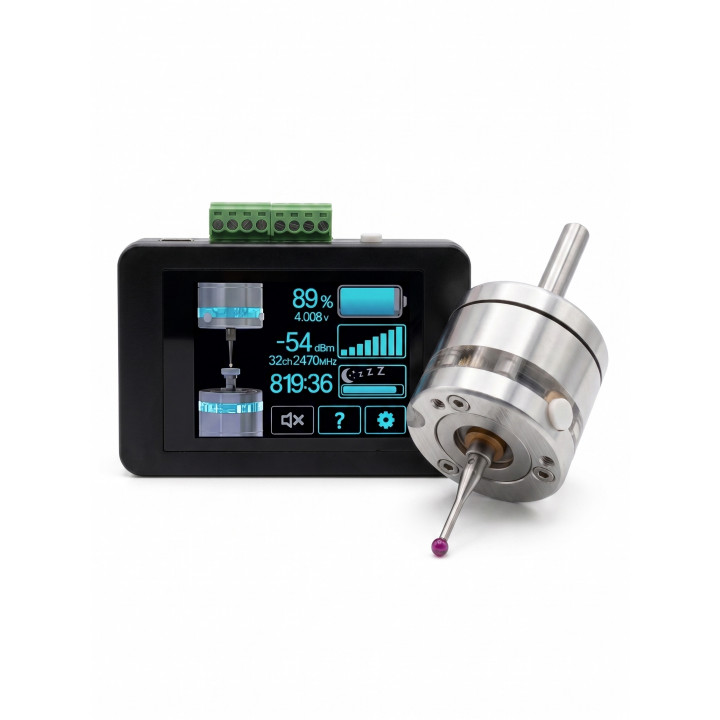

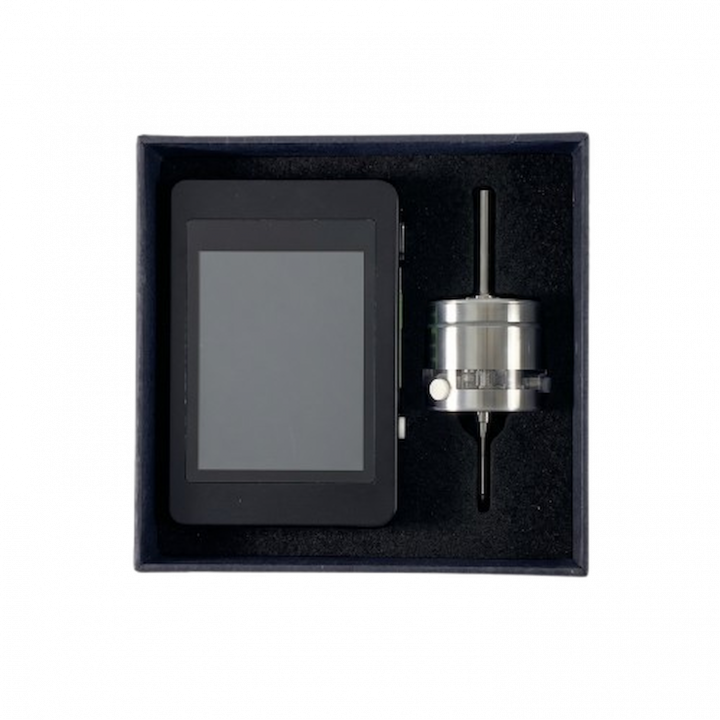

Wireless touch probe
Wireless touch probe
Wireless touch probe

WL10

$450
$450

Wireless CNC touch probe

Vers WLR wireless touch probe is designed to determine the exact coordinates of objects mounted on a CNC milling machine.

The CNC system generates these coordinates when probe stylus touches the object and uses them to:

  • Link the machining program to the location of the workpiece,
  • Measure lengths and diameters
  • Search for hole centers and edges
Compatibility
LinuxCNC, Mach3, embedded systems
Connection
The probe communicates with the receiver at 2.4 GHz radio frequency
In stock

visibilityVideo overview (soon) menu_bookUser guide

Specifications

straighten Unidirectional repeatability
< 0.001 mm
battery_std Runtime per charge
500 hours
settings_overscan Over travel limit (X,Y)
±10mm
vertical_align_bottom Over travel limit (Z)
-7 mm
timer Tripped signal delay
1,5 ms
settings_input_antenna Radius of the radio channel

  • Reference
    WL10
  • In stock
    9 Items
  • Condition
    New
