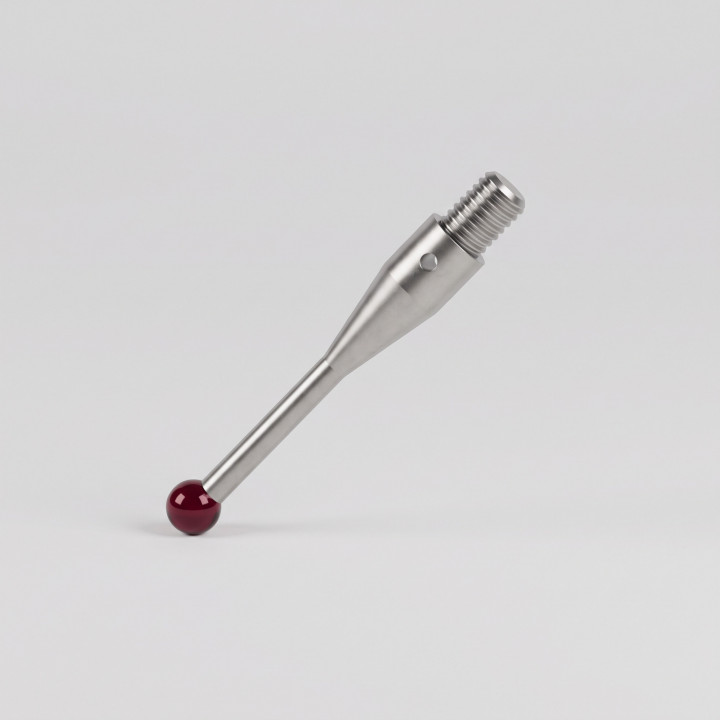

Stylus L23 is designed for direct measurement of easily accessible part features.
The rigid stainless steel stem ensures high stability for standard tasks, while the ultra-hard ruby tip delivers exceptional precision and durability:
- Direct measurement of unobstructed surfaces
- Maximum rigidity with stainless steel stem
- Industry benchmark wear resistance (Ruby tip)

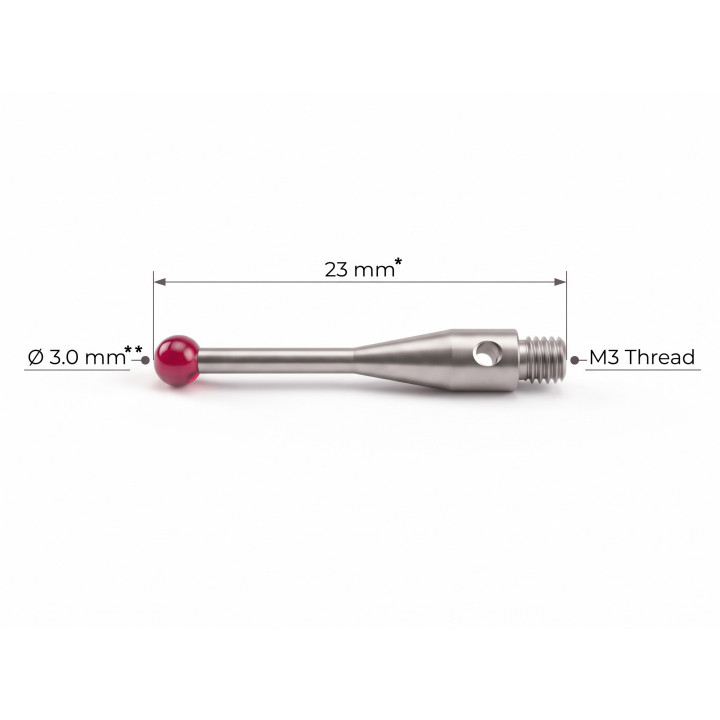

Specifications
Length (L)*: 23mm
Thread: M3
Synthetic ruby tip:
Ø 3.0mm**
Conditions of use
Minimum measurable
hole diameter: 4 mm
Maximum measurement
depth: 14 mm
* L - distance from tip to base of thread.
** The diameter of the tip is indicated approximately, in fact it can differ from that specified within ±0.02mm, the spherical irregularity < 0.001 mm.
